Hydraulic Cylinders
Engineered from high-end state-of-the-art technology, our Hydraulic Cylinders come largely utilised for applications in fine feed or high speed, fluid power for pushing and pulling, static and dynamic load, short or long strokes or combination of these and other requirements. Sold in tie rod, bolted and welded types of construction, these cylinders are designed with quality and subtle components.

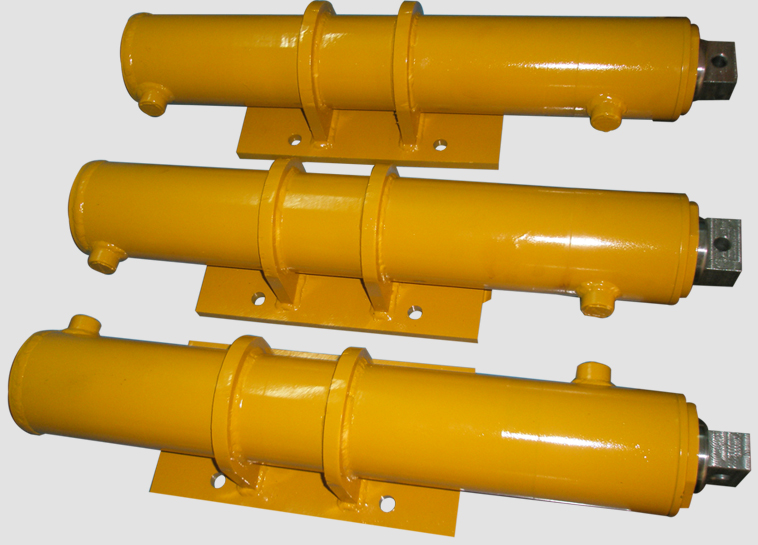

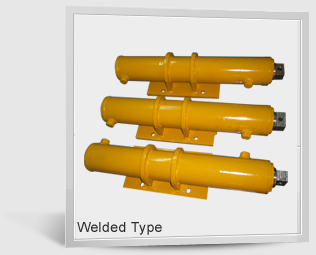

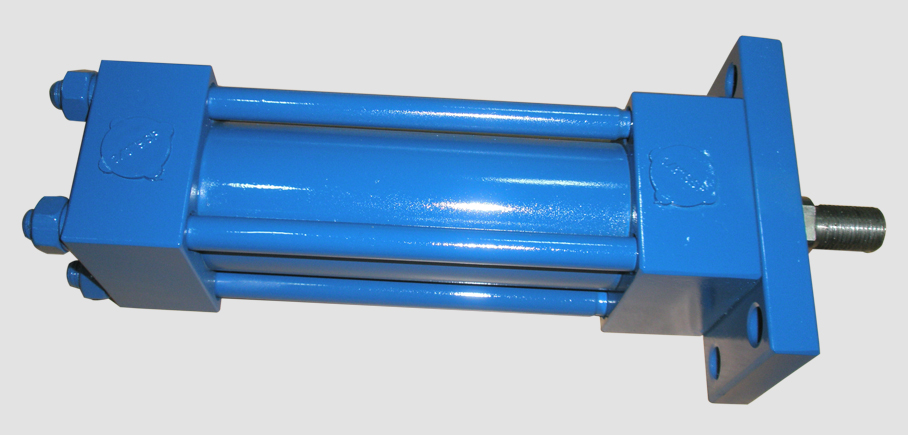

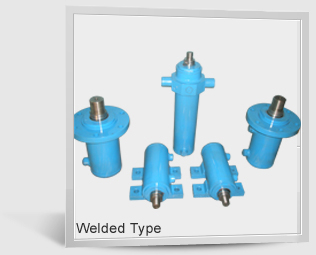

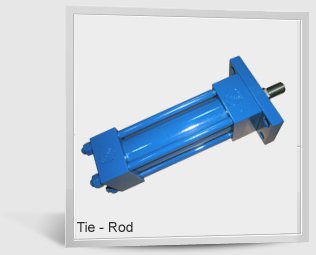

Weldable Construction & Tie Rod type cylinders for Pressure up to 210 Bar.

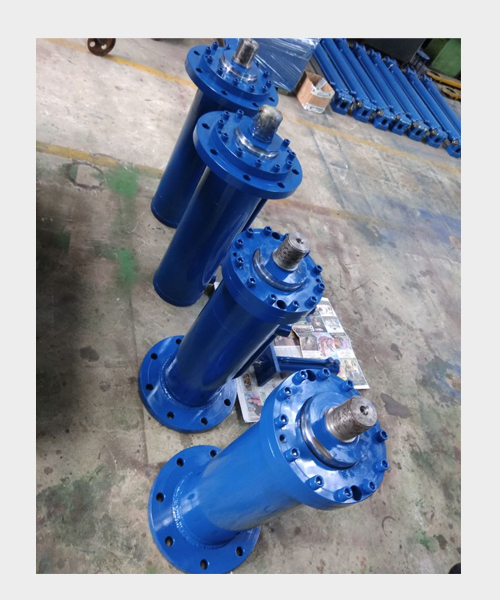

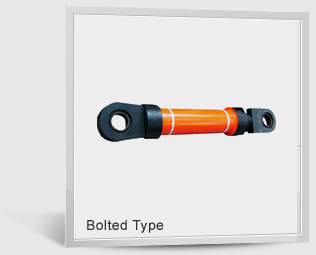

Bolted construction cylinder for Pressure up to 400 Bar

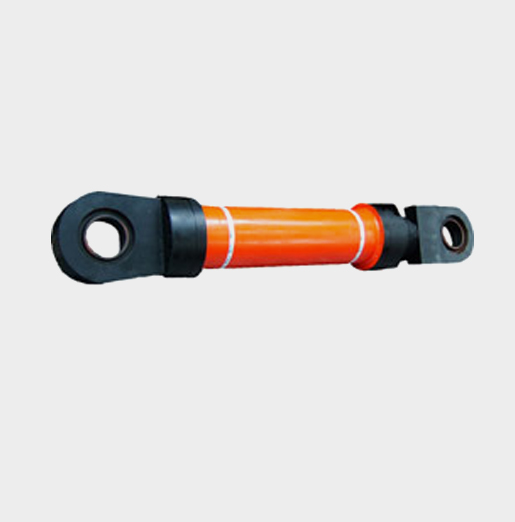

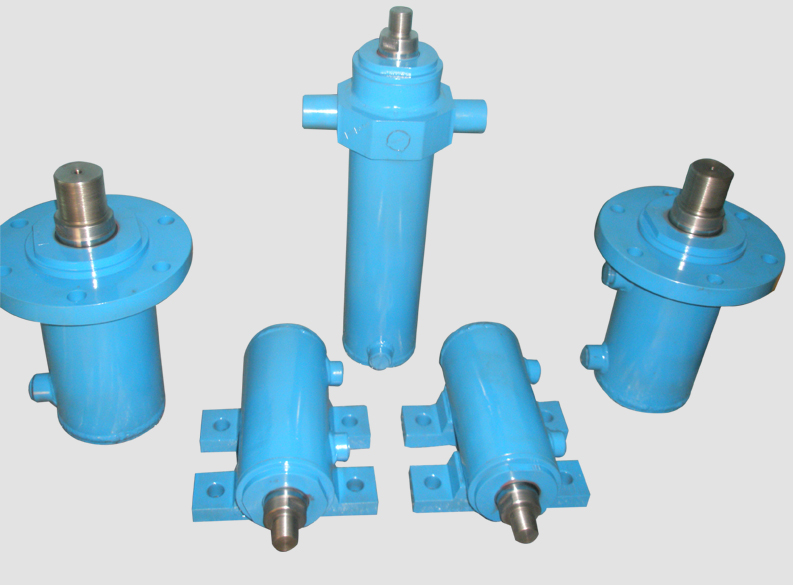

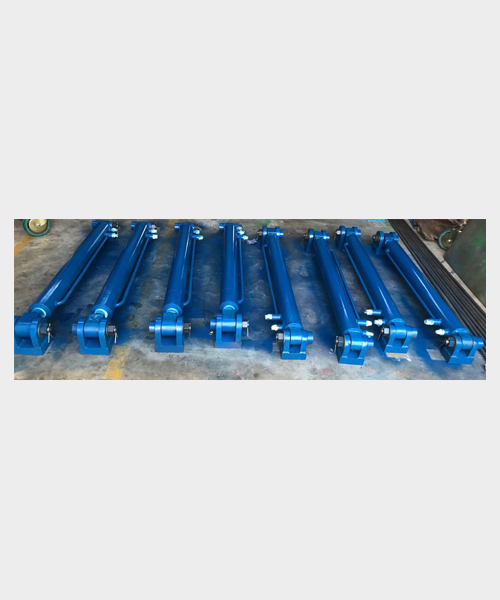

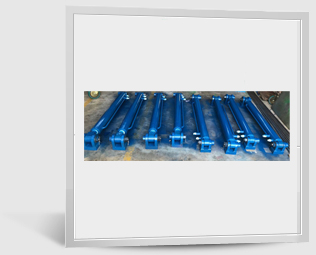

Various Mounting like Flange Mounhting, Clevis mounting, Foot Mounting & Trunion Mounting
Material of construction of Tubes- ST 52.3 (Yield strength 520 N/Sq.mm.); Skived & Burnished-Imported
Hard Chrome Rods made of CK 45 N with minimum plating thickness of 25-30 Microns
Seals from Hallite/ Busak+Shamban/Merkel
We have executed hydraulic Cylinder up to 200 bore and 3000mm Stroke Length
